| OVERVIEW | |
|
PRODUCT SNAPSHOT:
|

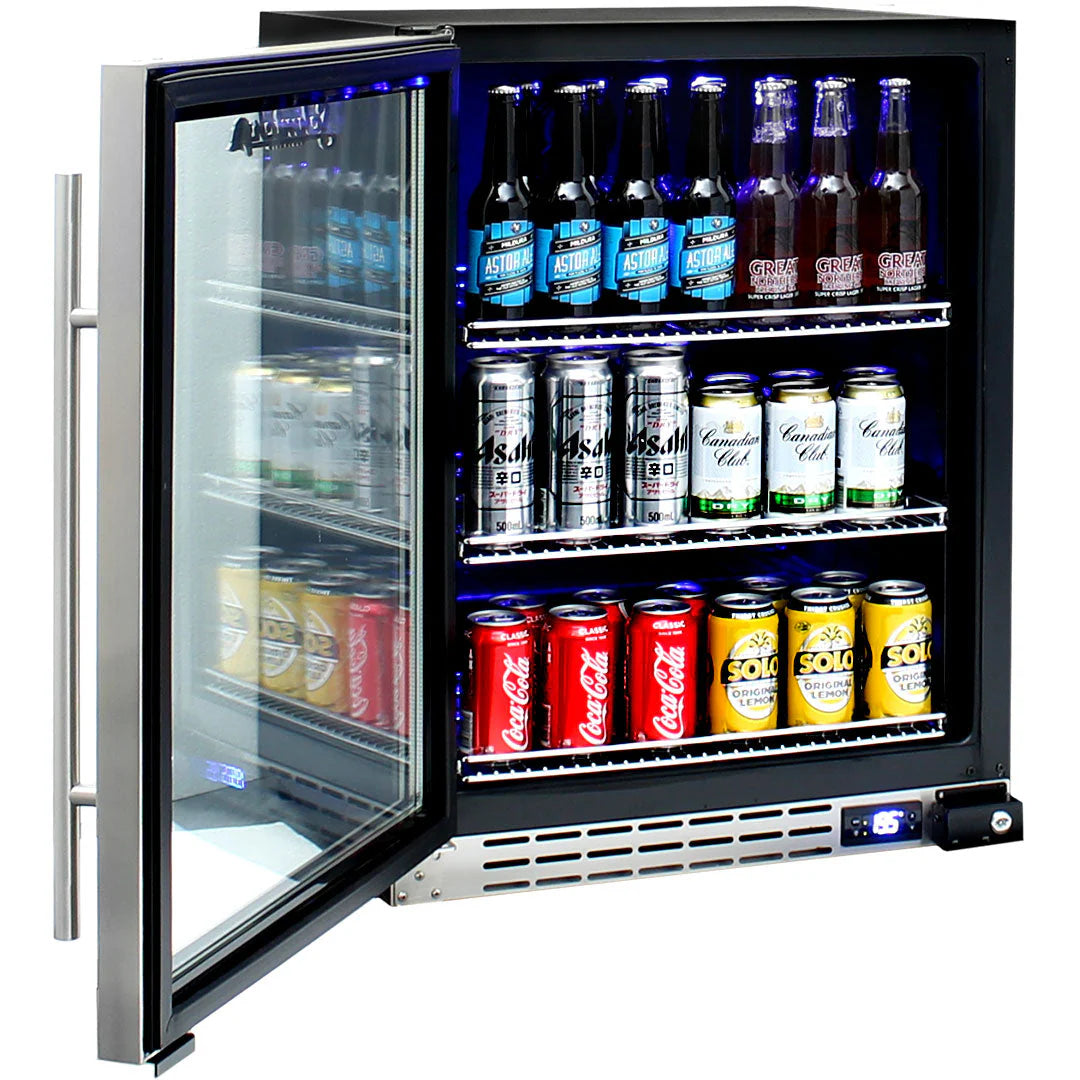

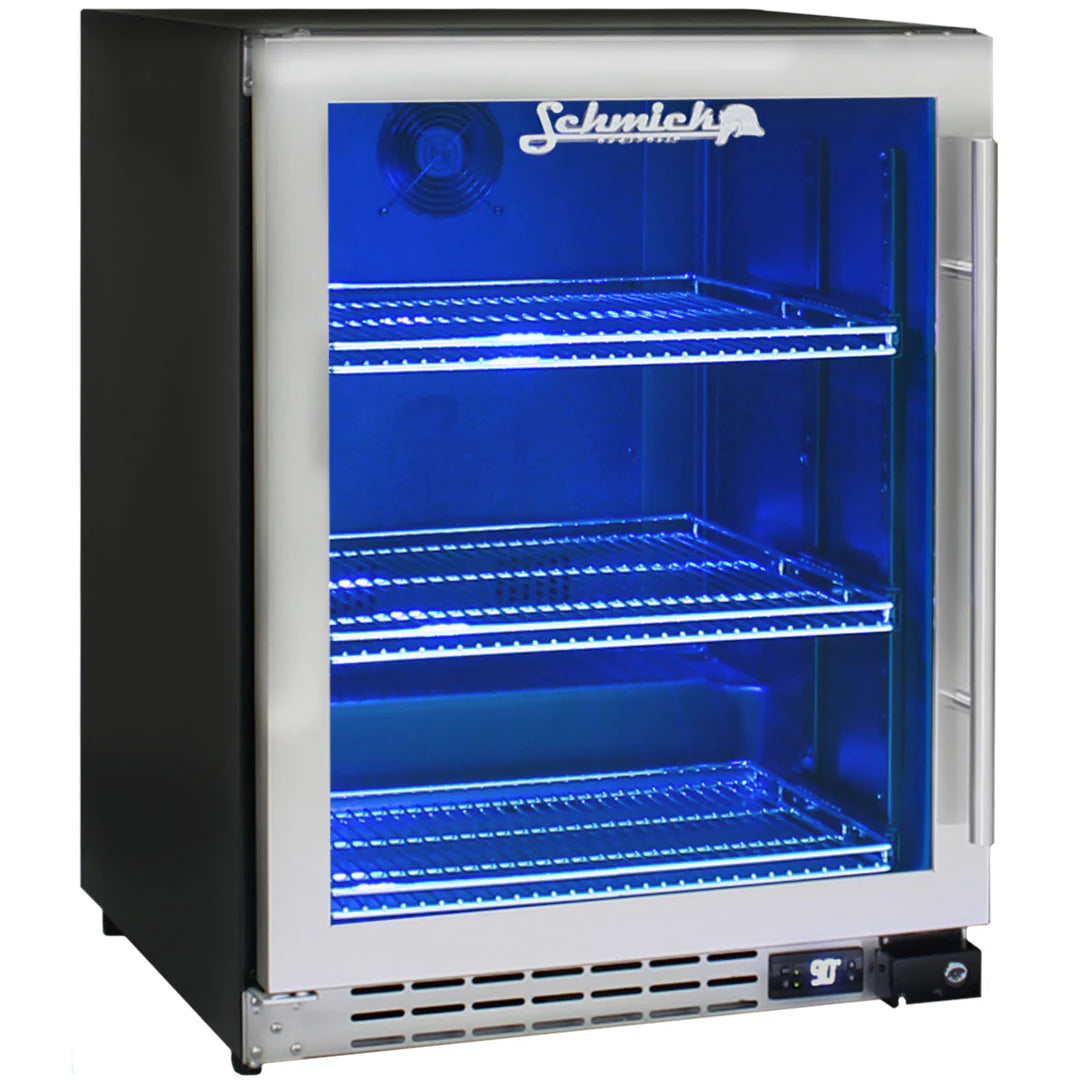

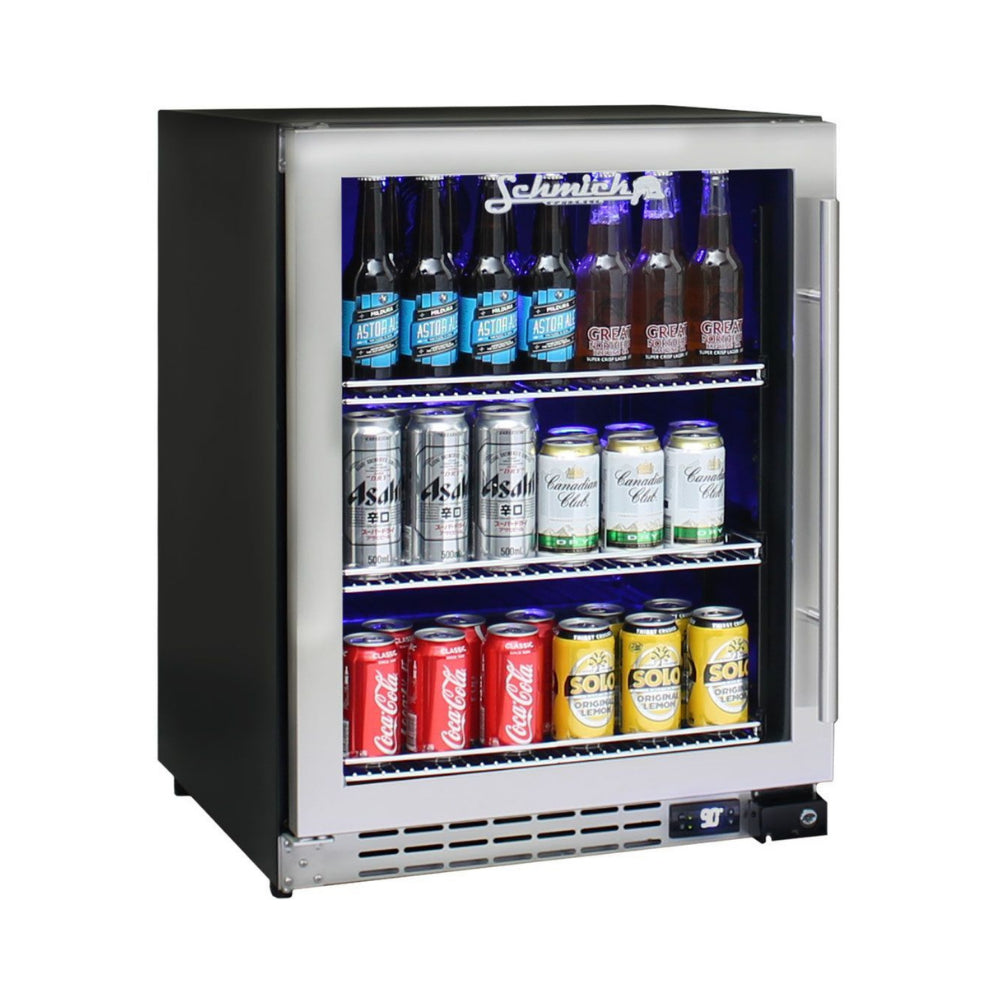

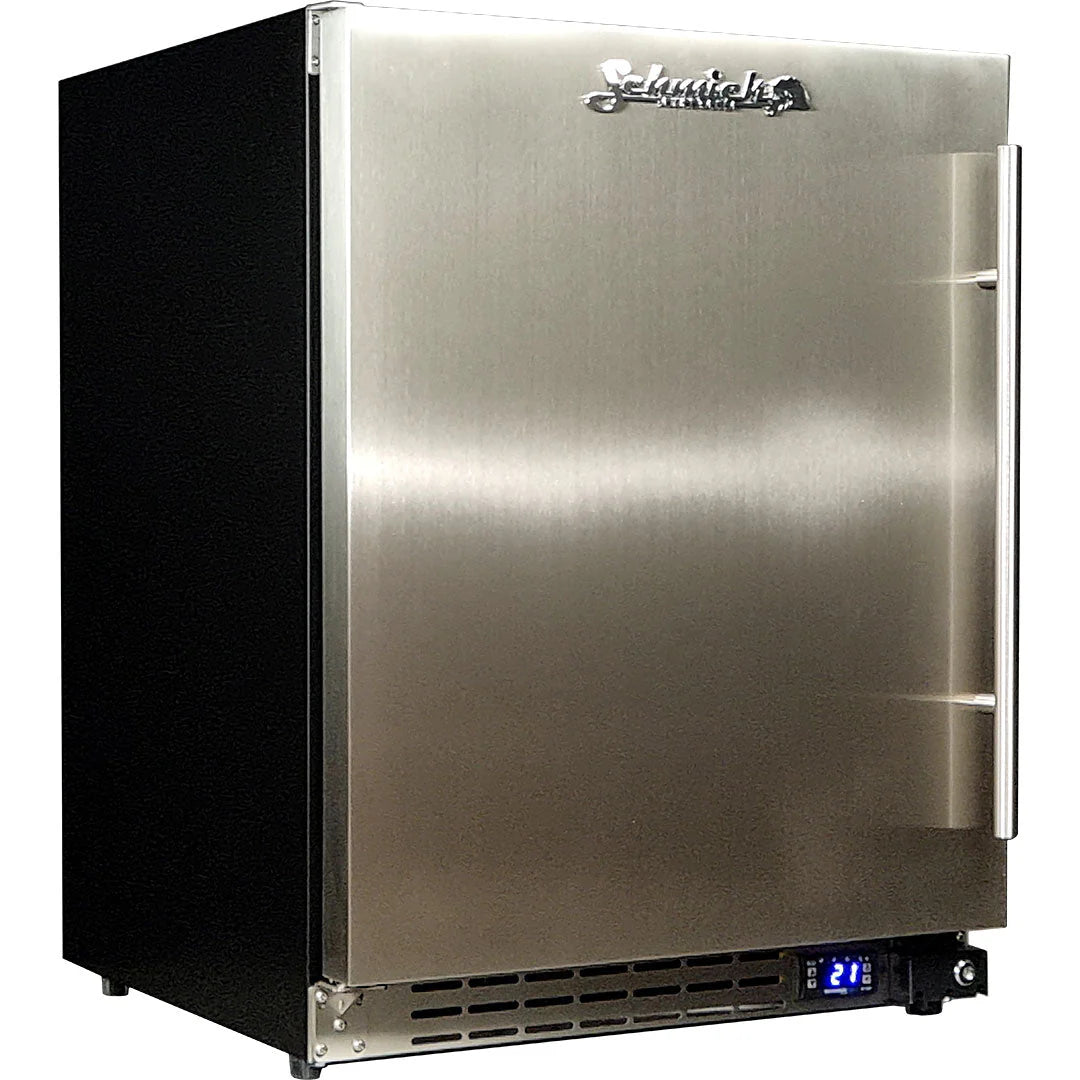

Classy front venting under bench bar fridge with triple glazing, LOW E glass, Quiet running design with German ECO controller and versatile shelving options, matching wine fridge available JC132W. Can be built under benches for a sleek look. |
| TECHNICAL | |
|
COOLING:
|
Can cool to 2°C no problems in 43°C ambient
|
|
LOCATION SUITABILITY:
|
Indoor Or Outdoor
|
|
POWER CONSUMPTION:
|
1.15 kW/24hrs
|
|
RUNNING COST:
|
Approximately $107.62 per year (Based on 25.64 cents per kilowatt)
Learn more about energy consumption |
|
NOISE LEVEL:
|
|
|
BRAND PARTS USED:
|
Danish Danfoss ECO Controller , Noctua Silent and Quiet Fans , Meanwell Transformer From Taiwan and High Quality Jiaxipera Chinese Compressor
|
|
WEIGHT:
|
48.00 kg
|
|
|
|
| PEACE OF MIND | |
|
BRAND INFORMATION:
|
Schmick is our own flagship brand that is reserved for the best units we sell that encompass both excellent design and performance.
|
|
APPROVALS:
|
RCM and SAA Electrical,EMC (C-Tick)
|
|
|
|
| MAIN FEATURES | |
|
TASTY INFO 1:
|
With brand parts and excellent functionality unit is very reliable
|
|
TASTY INFO 2:
|
Triple glazed lessens inner noise and keeps cold in better.
|
|
TASTY INFO 3:
|

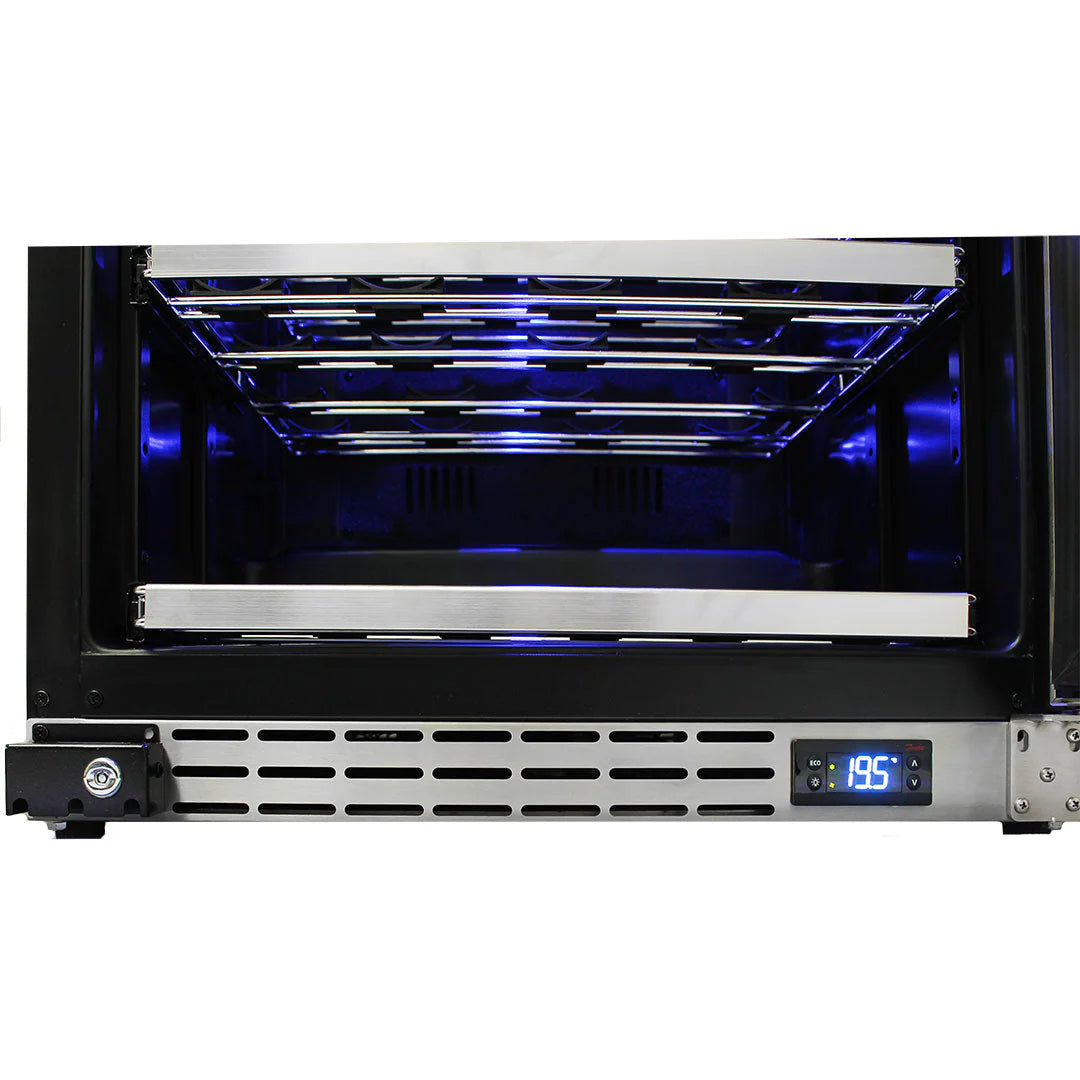

Danfoss brand controller with ECO mode saves energy whilst away from home
|
|
TASTY INFO 4:
|

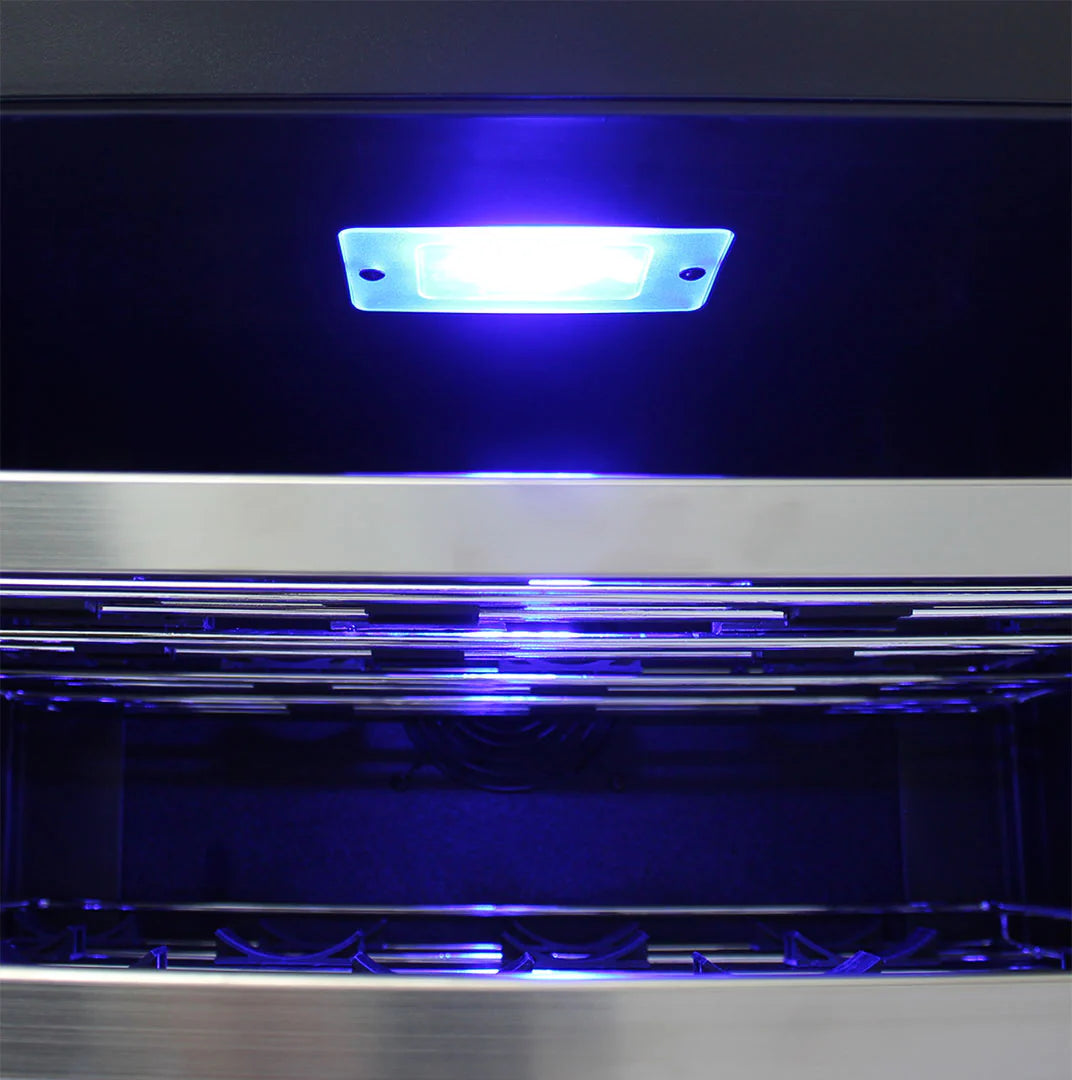

Lockable, reversible door and adjustable shelves with soft blue LED make it a really nice looking unit.
|
|
TASTY INFO 5:
|

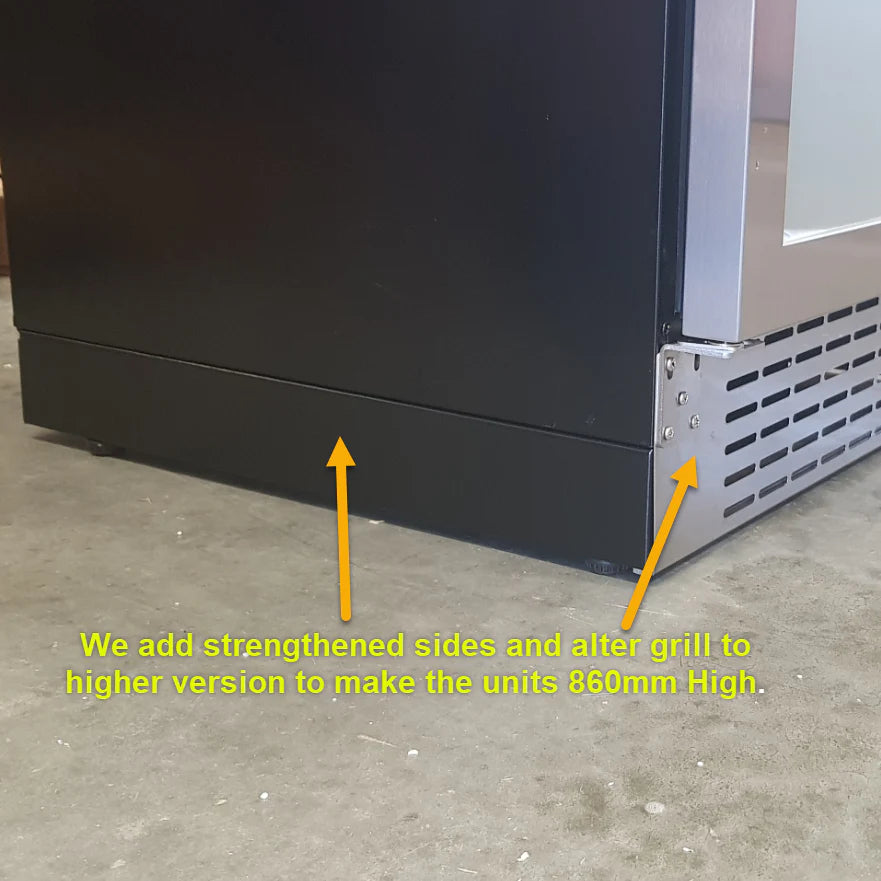

Height of 800mm can be risen to 860mm with the 'Highrise" kit option
|
|
TASTY INFO 6:
|
Quiet operation with Noctua fans means indoors is no problems
|
|
ENERGY SAVING FEATURES:
|
12Volt Fans , Cyclopentane foaming,LED lighting,R600 100% ozone safe gas , ECO controller , LOW E glass and Triple Glazing
|
|
ADJUSTABLE FEET:
|
Yes (4 adjustable feet)
|
|
LOCKABLE:
|
Yes
|
|
GLASS DOOR INFORMATION:
|
Triple glazed tempered LOW E glass
Learn more about glass doors and condensation |
|

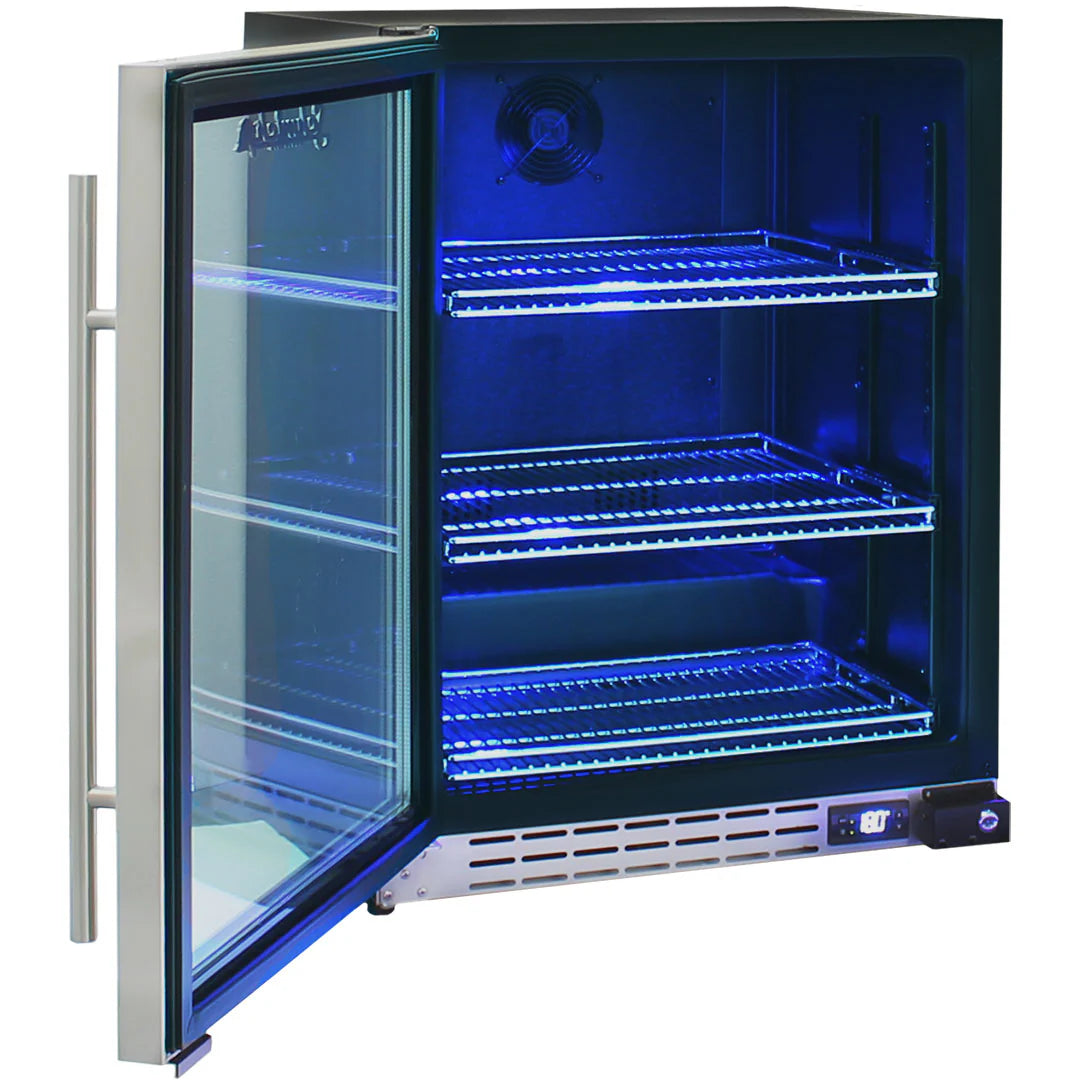

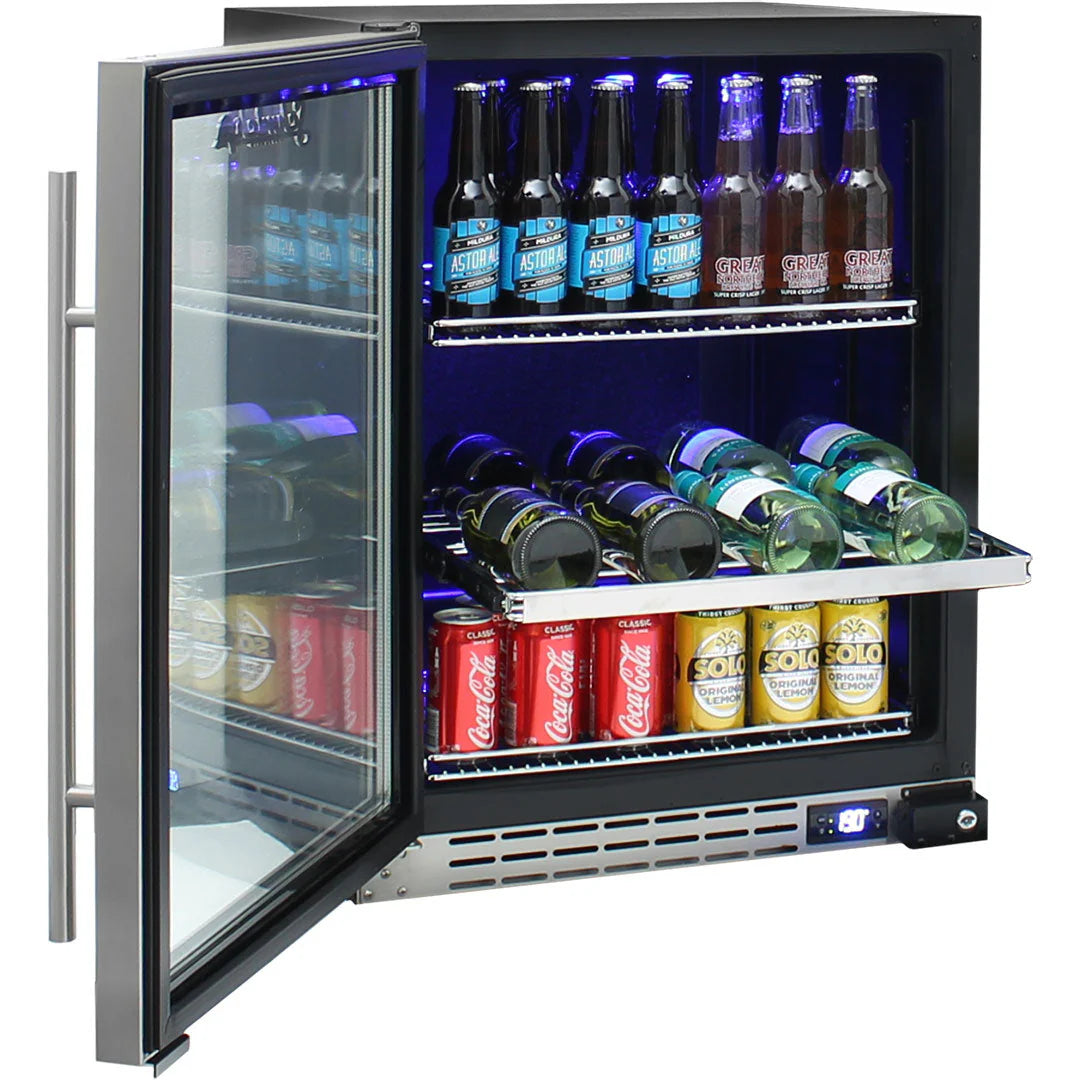

SHELVING:
|
3 x HD chromed heavy duty
|
|
BODY COLOR:
|
Black
|
|
MODEL CODE:
|
JC132B
|
|
|
|
| CAPACITY | |
|
WHAT FITS IN:
|
|
|
Standard 375ml cans:
140
|
|
|
Litres:
132
|
|
|
|
|
| DIMENSIONS | |
|
EXTERNAL:
|
Width:
595mm
|
|
Depth:
595mm
|
|
|
Height:
800mm
|
|
|
OTHER SIZE INFORMATION:
|
Door opens 5mm outside the fridge diameter, handle is 45mm extra depth
|
|
|
|
| USEFUL INFORMATION | |
A built in fridge adds a touch of class
If you are building this fridge in, your cavity will need to be at least 615mm wide, 810mm high and 645mm deep.
| Cavity dimensions | Minimum ventilation |
|---|---|
| Width: 615mm | Each side: 10mm |
| Depth: 645mm | Rear: 50mm |
| Height: 810mm | Top: 10mm |
Product width: 595mm
Product depth: 595mm
Product height: 800mm
Cavity width: 615mm
Cavity depth: 645mm
Cavity height: 810mm
Ventilation each side: 10mm
Ventilation rear: 50mm
Ventilation top: 10mm
2 years parts and labour included
You can extend the the included warranty to a total of 3 years parts and labour
Included
2 years parts and labour
We come to you. This is not a back to base warranty and not a parts only warranty. We cover all parts and labour costs involved with fixing your fridge.
Comprehensive
3 years parts and labour
This is our top level cover and covers you for 3 years on all benefits provided by our included warranty.
