MODEL: JC165B-1

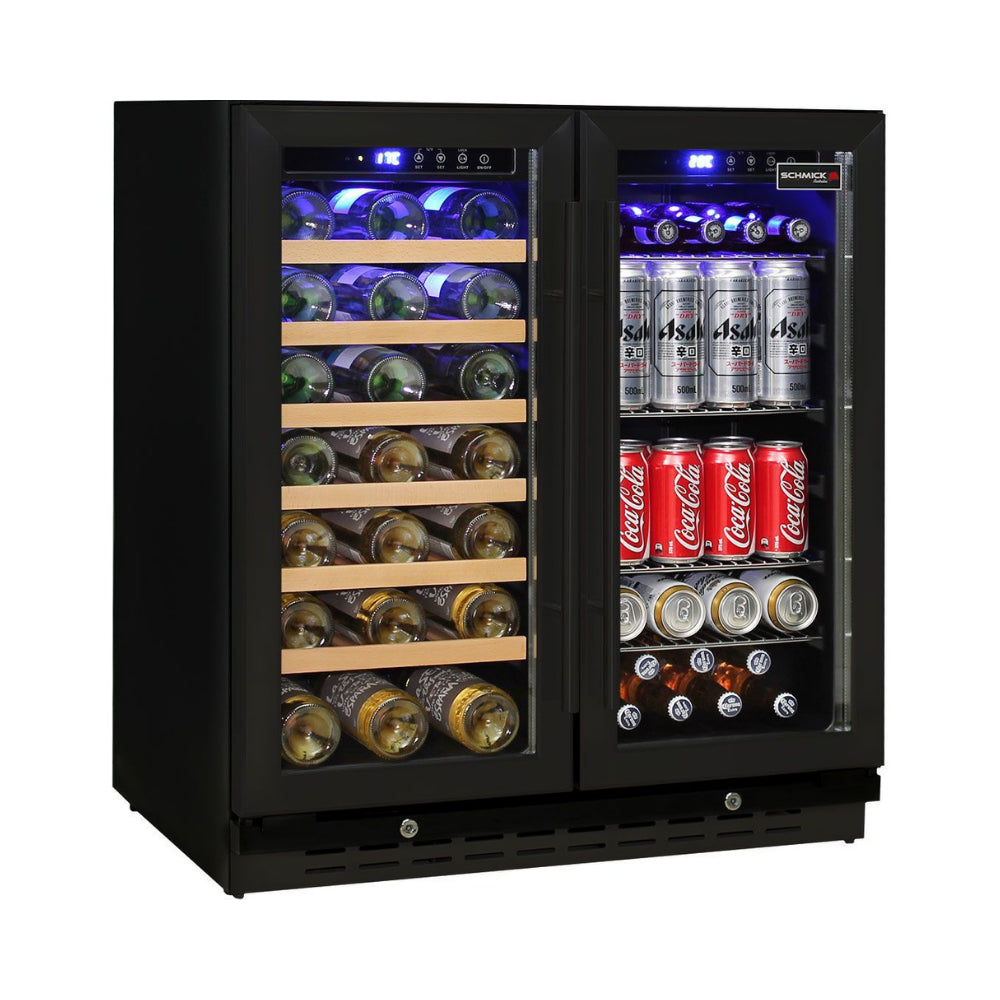

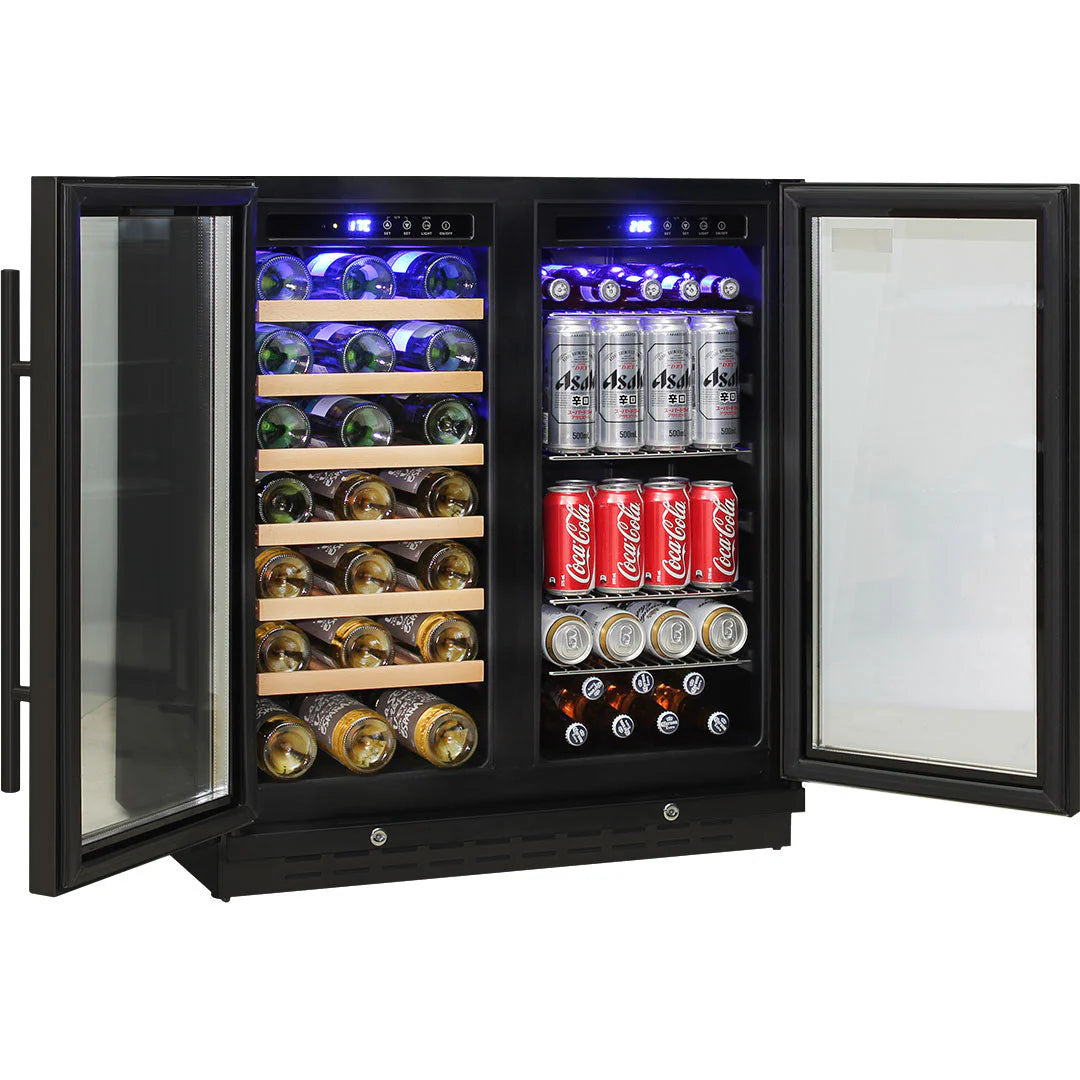

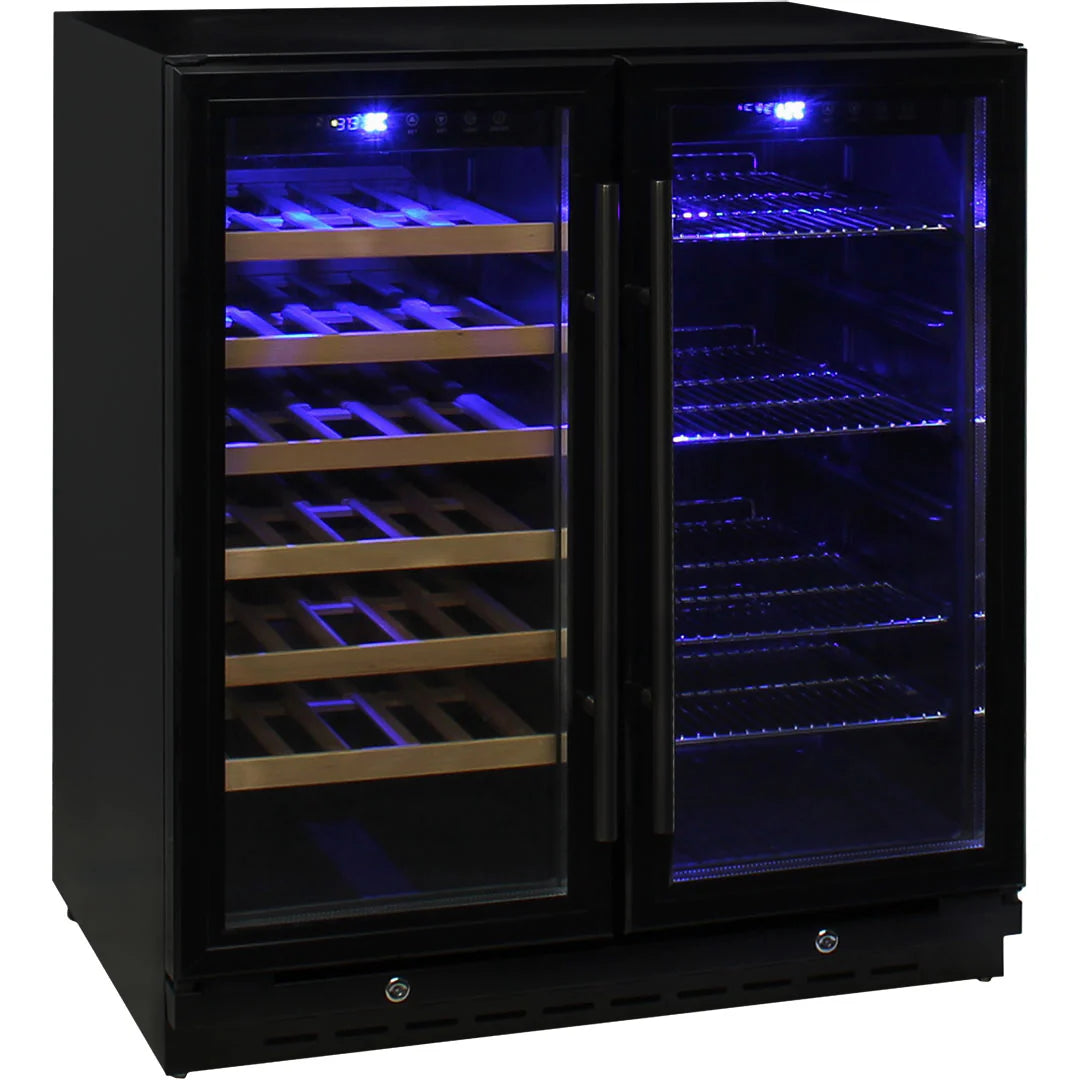

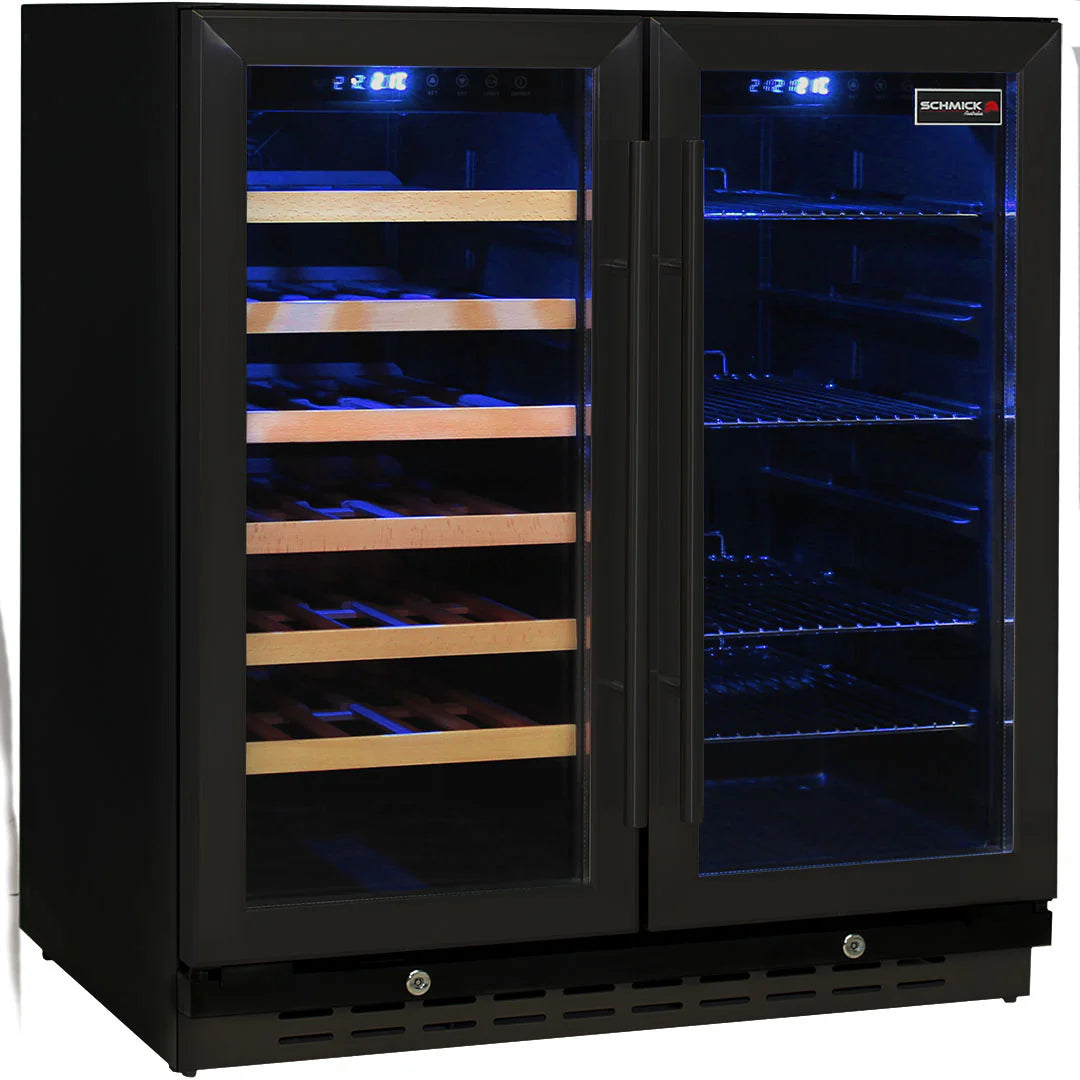

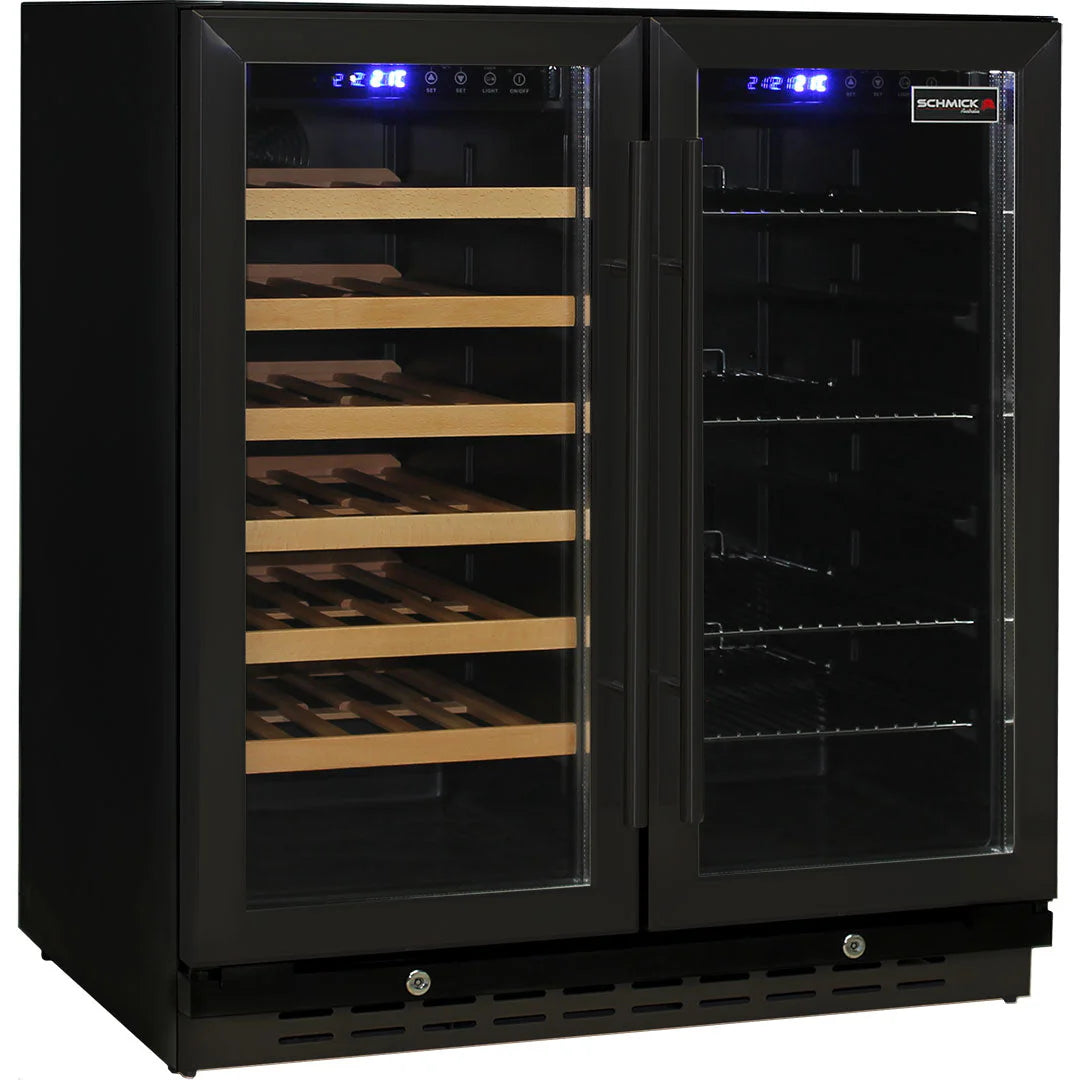

Under Bench Beer And Wine Dual Zone Bar Fridge Model JC165B
Size: 750 x 570 x 865 (WxDxH mm)
In Stock
Warranty Options
Estimated Delivery Time: 5-12 Business Days
| OVERVIEW | |
|
PRODUCT SNAPSHOT:
|

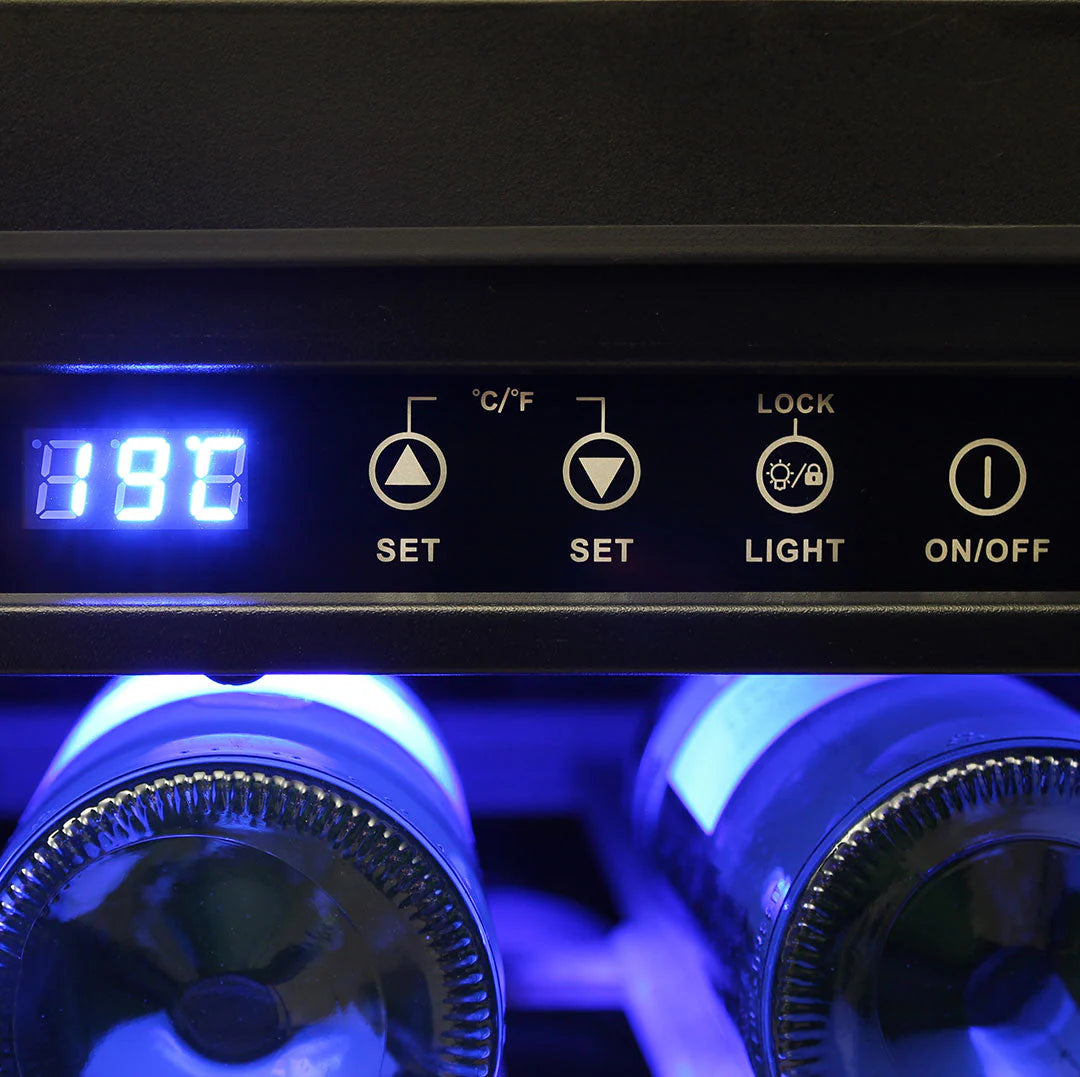

Twin zone beer and wine fridge designed for indoor quiet applications and enclosed outdoor entertaining (up to 32°C). Slide out shelving and nice soft LED lighting make it a nice little addition to your home entertaining area. Shelving can interchange from beer and wine, the electronic touch control is a nice feature. |
| TECHNICAL | |
|
COOLING:
|
2 zones independently controlled, beer 2-12°C, wine 8-18°C
|
|
LOCATION SUITABILITY:
|
Indoor
|
|
POWER CONSUMPTION:
|
1.23 kW/24hrs
|
|
RUNNING COST:
|
Approximately $115.11 per year (Based on 25.64 cents per kilowatt)
Learn more about energy consumption |
|
NOISE LEVEL:
|
|
|
BRAND PARTS USED:
|
Noctua Silent and Quiet Fans , High Quality Chinese Compressor and Meanwell Transformer From Taiwan
|
|
WEIGHT:
|
61.00 kg
|
|
|
|
| PEACE OF MIND | |
|
BRAND INFORMATION:
|
Schmick is our own flagship brand that is reserved for the best units we sell that encompass both excellent design and performance.
|
|
APPROVALS:
|
SAA Electrical and EMC (C-Tick)
|
|
|
|
| MAIN FEATURES | |
|
TASTY INFO 1:
|
Tempered LOW E glass helps prevent condensation
|
|
TASTY INFO 2:
|
2 zones means you can mix and match your drinks selection
|
|
TASTY INFO 3:
|
Build in under counters is no problems, units vent at front through grill.
|
|
TASTY INFO 4:
|

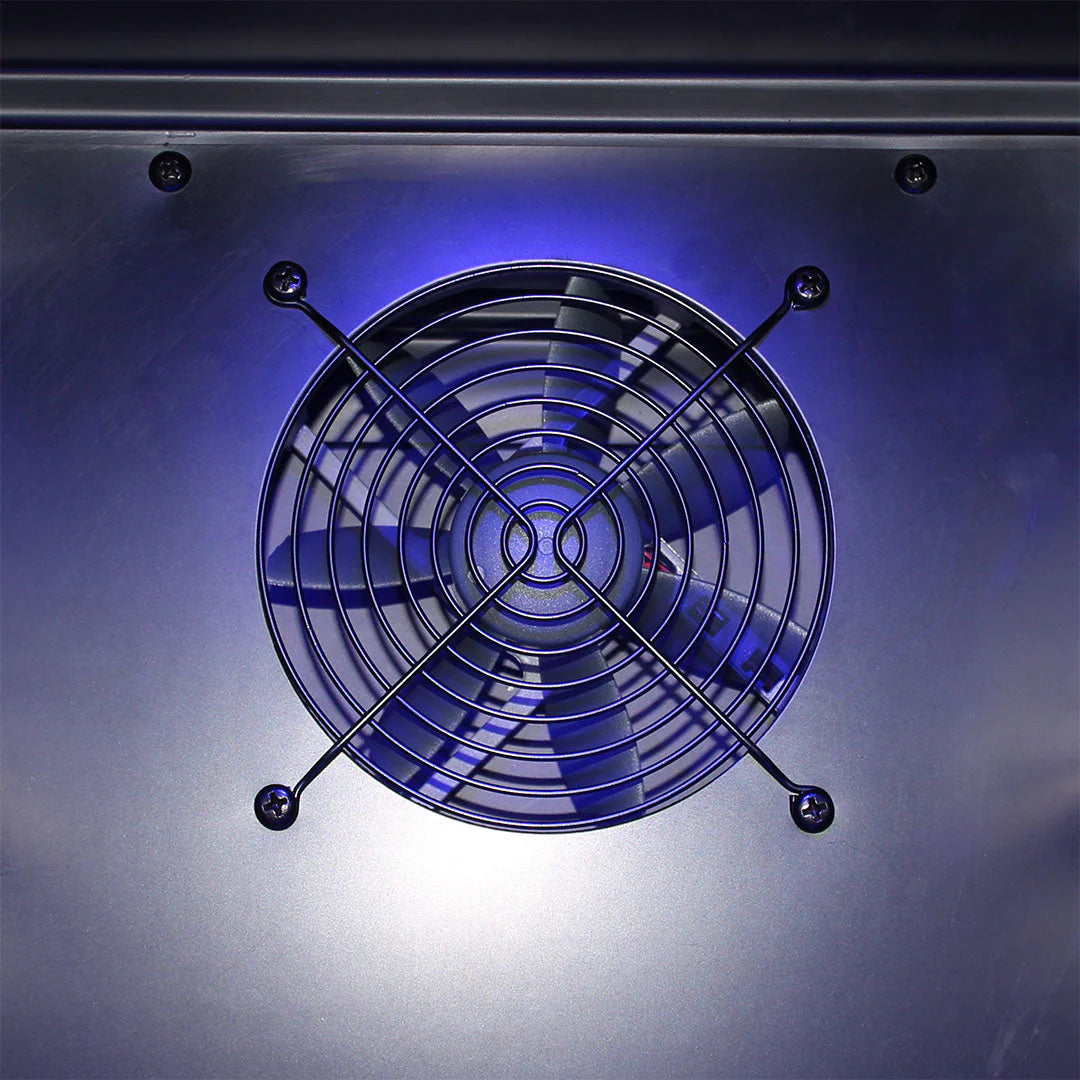

Quiet fans fitted to suit an indoor entertaining area
|
|
ENERGY SAVING FEATURES:
|
12Volt Fans , Cyclopentane foaming , LED lighting , LOW E glass and R600 100% ozone safe gas
|
|
ADJUSTABLE FEET:
|
Yes (4 adjustable feet)
|
|

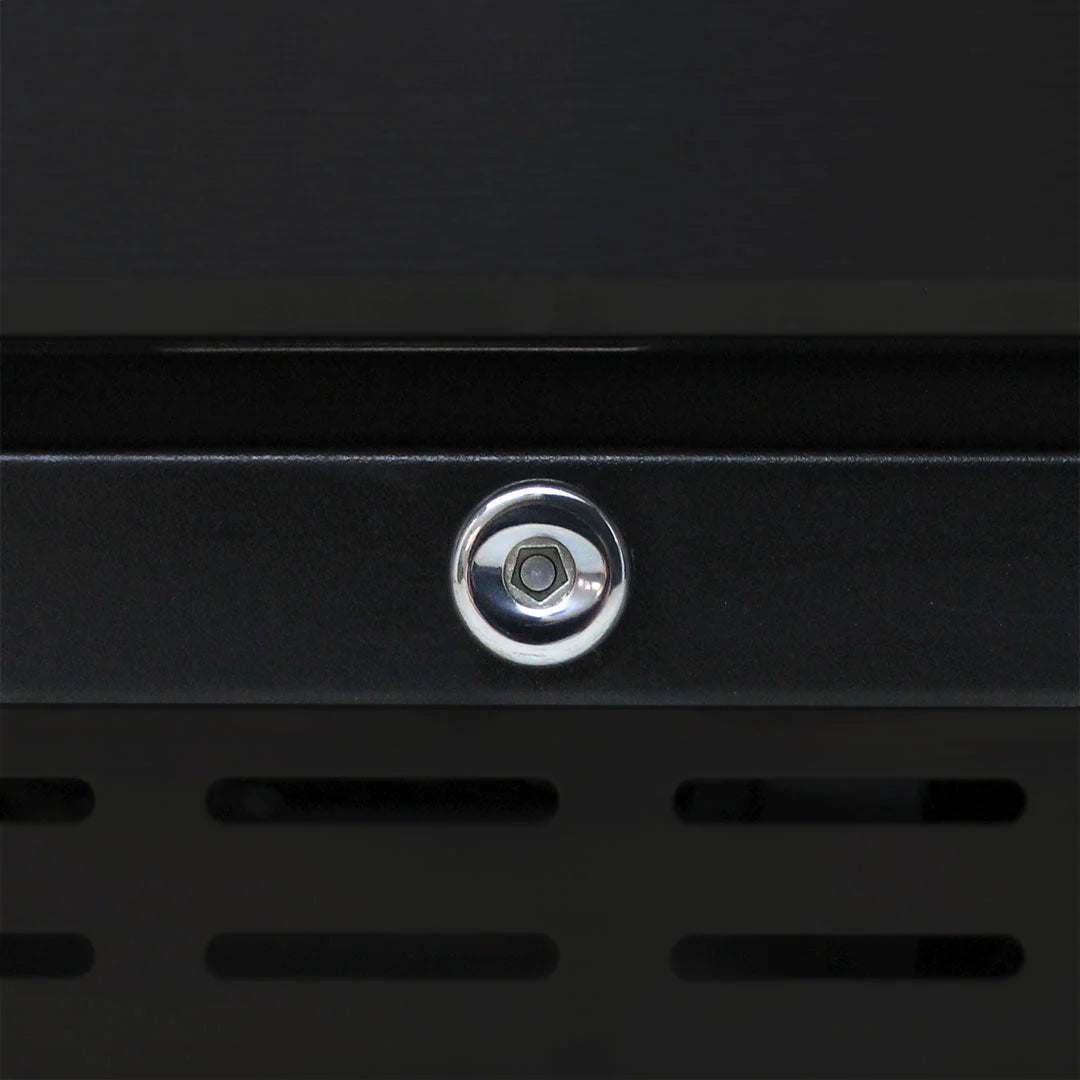

LOCKABLE:
|
Yes
|
|
GLASS DOOR INFORMATION:
|
Dual glazed tempered LOW E glass
Learn more about glass doors and condensation |
|

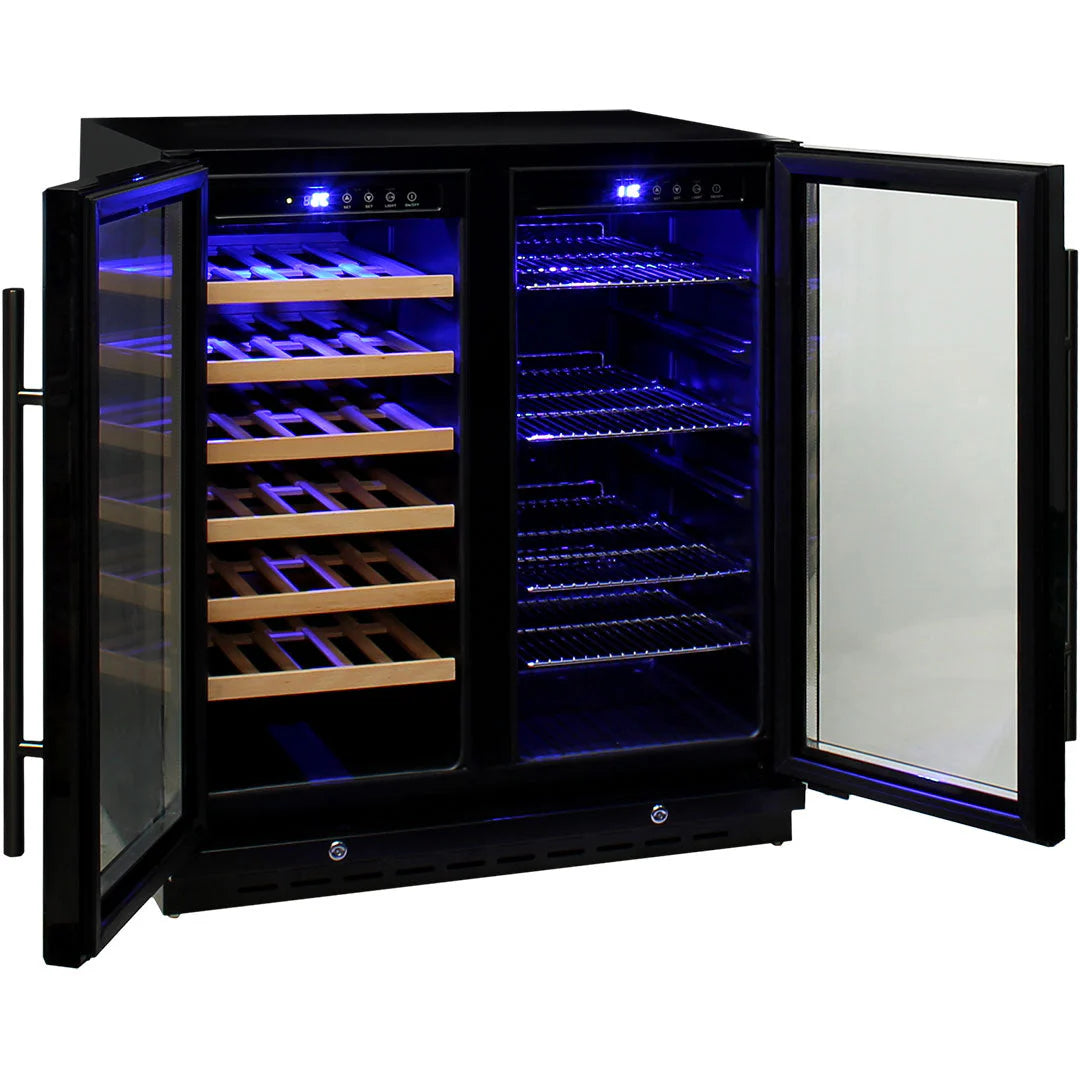

SHELVING:
|

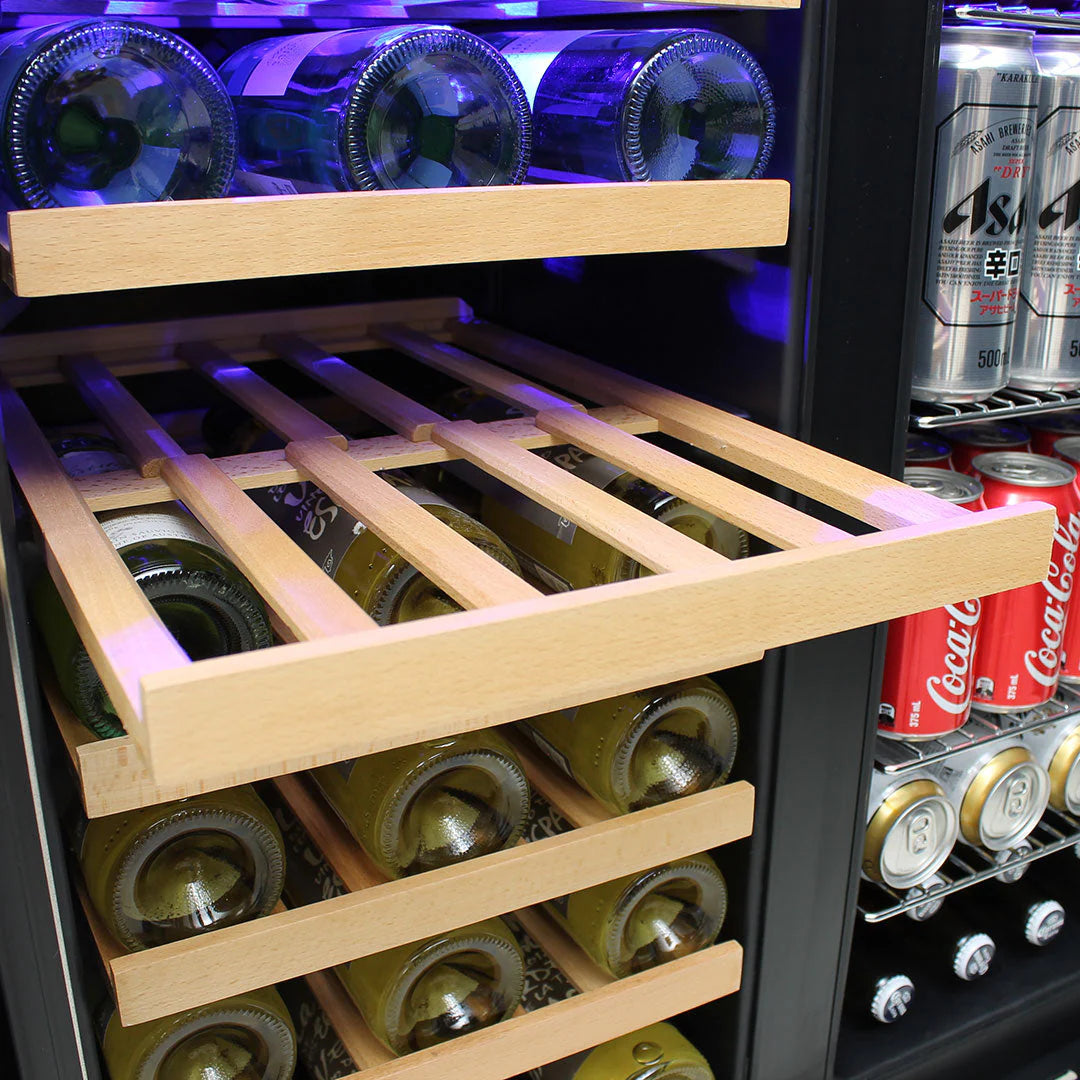

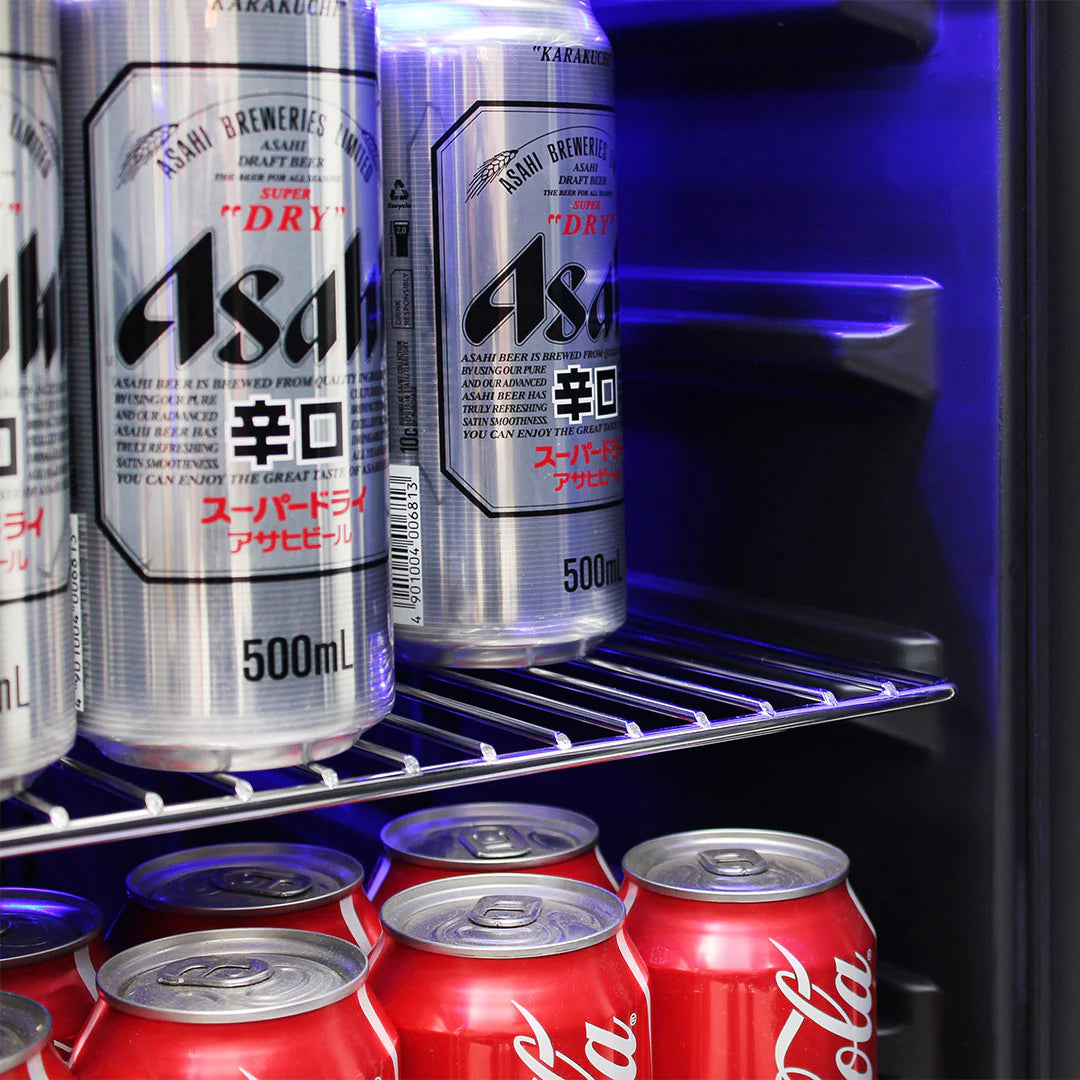

6 x Slide Out Wine Shelves 285mmW x 440mmD, 4 x Chromed Flat Shelves 280mmW x 435mmD
|
|
BODY COLOR:
|
Black
|
|
MODEL CODE:
|
JC165B
|
|
|
|
| CAPACITY | |
|
WHAT FITS IN:
|
Corona bottle:
72
|
|
Standard 375ml cans:
90
|
|
|
Standard wine bottles:
30
|
|
|
Litres:
165
|
|
|
SHELVING:
|
Wine bottle are based on the 78-82mmW standard bottles
|
|
|
|
| DIMENSIONS | |
|
EXTERNAL:
|
Width:
750mm
|
|
Depth:
570mm
|
|
|
Height:
865mm
|
|
|
INTERNAL:
|
Width:
600mm
|
|
Depth:
420mm
|
|
|
Height:
630mm
|
|
|
OTHER SIZE INFORMATION:
|
Door is 50mm thick included in depth of 570mm, door opens 390mm from front of fridge body
|
|
|
|
| USEFUL INFORMATION | |
A built in fridge adds a touch of class
If you are building this fridge in, your cavity will need to be at least 770mm wide, 875mm high and 620mm deep.
| Cavity dimensions | Minimum ventilation |
|---|---|
| Width: 770mm | Each side: 10mm |
| Depth: 620mm | Rear: 50mm |
| Height: 875mm | Top: 10mm |
Product width: 750mm
Product depth: 570mm
Product height: 865mm
Cavity width: 770mm
Cavity depth: 620mm
Cavity height: 875mm
Ventilation each side: 10mm
Ventilation rear: 50mm
Ventilation top: 10mm
2 years parts and labour included
You can extend the the included warranty to a total of 3 years parts and labour
Included
2 years parts and labour
We come to you. This is not a back to base warranty and not a parts only warranty. We cover all parts and labour costs involved with fixing your fridge.
Comprehensive
3 years parts and labour
This is our top level cover and covers you for 3 years on all benefits provided by our included warranty.
